Model: M03-1000

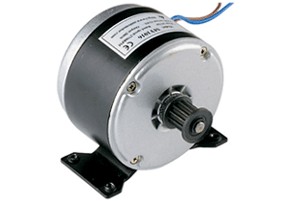

18 Volt electric motor used on the Minimoto Sport Racer electric pocket bike. Comes with 5M/15 belt sprocket.
Model: MY1016
Type: Brush
Voltage: 18 Volt DC
Rated Speed: 2700 Rpm
Rated Current: 10.9A
Sprocket: 5M/15 Belt
Output: 150W
Sprocket: Non-Removable Belt Sprocket
Case Length: 3-1/16" (77 mm)
Case Diameter: 3-15/16" (100 mm)
Bolt Hole Distance (Adjacent): 3-3/4" (95 mm)
Bolt Hole Distance (Cross Bracket): 1-5/8" (42 mm)
