Model: M03-1009

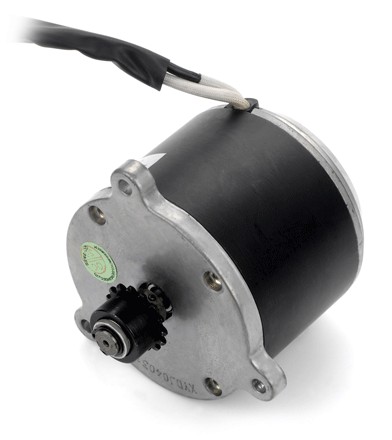

24 Volt 350 Watt Electric Motor with 15 Tooth Chain Sprocket for 350 Series Scooters (Currie Technologies)
MODEL: XYD-6D
TYPE: Brush
VOLTAGE: 24 Volt DC
RATED SPEED: 2600 RPM
RATED CURRENT: 22 Amp
SPROCKET: Roller Clutch, 15 tooth
OUTPUT: 350 Watts
ROTATION: Clockwise
WIRE CONNECTOR LENGTH: 14-1/2"
MOUNTING HOLES: 4" apart
HEIGHT: 5"
DIAMETER: 5"
