Model: M03-1013

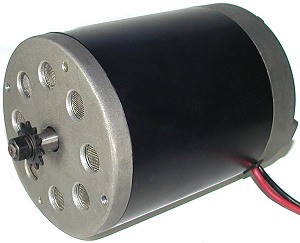

24 volt 500 watt electric scooter and bike motor with 11 tooth 8 mm 05T chain sprocket.
Type: Brush
Voltage: 24 Volt DC
Rated Speed: 2500 Rpm
Rated Current: 27.4 Amp
Sprocket: 8 Mm 05T Chain, 11 Tooth
Output: 500 Watts
Sprocket: Removable Bolt Sprocket
Case Length: 5-5/16" (135 mm)
Case Diameter: 4-1/4" (108 mm)
Drive Shaft Length: 1" (25 mm)
Drive Shaft Diameter: 5/16" (8 mm)
Mounting Hole Distance: 3-3/4" (95 mm)
