Model: M03-1011

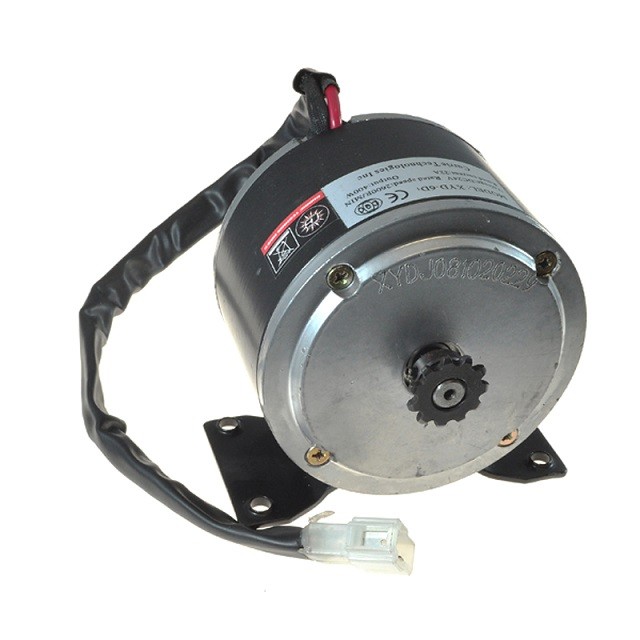

24 Volt 400 Watt motor from Currie Technologies. OEM motor on 400 Series Schwinn & IZIP electric scooters (chain drive).
Type: Brush
Voltage: 24 Volt DC
Rated Speed: 2600 Rpm
Rated Current: 22 Amp
Sprocket: #25 Chain 11 Tooth
Output: 400 Watts
Sprocket: Removable Set-Screw Sprocket
Case Length: 3-13/16" (97 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 3/8" (10 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Bolt Hole Distance (Adjacent): 3-3/4" (95 mm)
Bolt Hole Distance (Cross Bracket): 1-5/8" (42 mm)MODEL: XYD-6D
TYPE: Brush
VOLTAGE: 24 Volt DC
RATED SPEED: 2600 RPM
RATED CURRENT: 22 Amp
SPROCKET: Roller Clutch, 15 tooth
OUTPUT: 350 Watts
ROTATION: Clockwise
WIRE CONNECTOR LENGTH: 14-1/2"
MOUNTING HOLES: 4" apart
HEIGHT: 5"
DIAMETER: 5"
