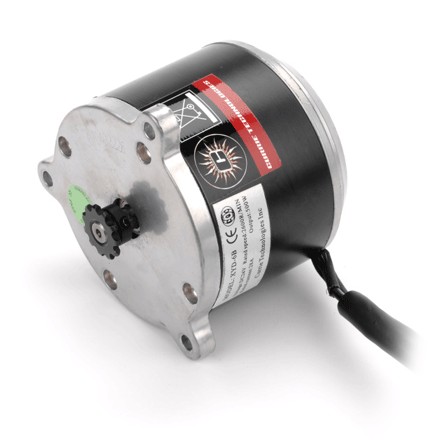

Model: M03-1014
24 Volt 500 Watt motor from Currie Technologies. OEM motor on 500 Series Schwinn & IZIP electric scooters (chain drive)
Type: Brush
Voltage: 24 Volt DC
Rated Speed: 2600 Rpm
Rated Current: 28 Amp
Sprocket: #25 Chain 11 Tooth
Output: 500 Watts
Rotation: Reversible
Sprocket: Removable Set-Screw Sprocket
Case Length: 3-7/8" (98 mm)
Case Diameter: 3-15/16" (100 mm)
Drive Shaft Length: 1/2" (13 mm)
Drive Shaft Diameter: 3/8" (10 mm)
Mounting Hole Distance: 3-15/16" (100 mm)
